Product Description
| Model NO. | WD1588AB | Mixing Ratio | 5:1 |
| Application | Pouring | Usage | Construction, Fiber & Garment, Footwear & Leather. |
| Flammable Retardant | UL-94V0 | Certificate | RoHS, SGS, Reach, UL |
| Type | Liquid Chemical | Main Raw Material | Epoxy |
| Classification | Double Components Adhesives | Water Absorption | Less Than or Equal to 0.5 |
| Supply Ability | 100 Ton/Tons Per Month | OEM | Available |
| Shelf Life | 9 Months | Cure Condition | Room Temperature |
| Transport Package | Barrel | Specification | 5kg per bottle |
| Trademark | SWETE | Origin | China |
WD1588AB Insulated Bubble Free Epoxy Resin for Electronic Potting
Feature
Epoxy resin WD1588AB is a black epoxy potting resin, that can be cured under normal temperatures and low temperatures, with good flowing properties, and natural defoaming, it can also be cured at high temperatures.
Application

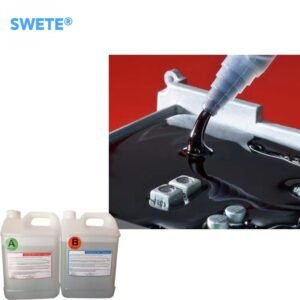

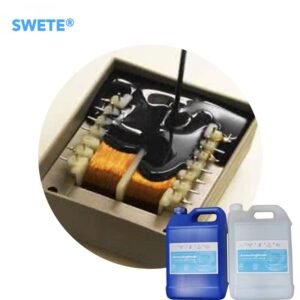

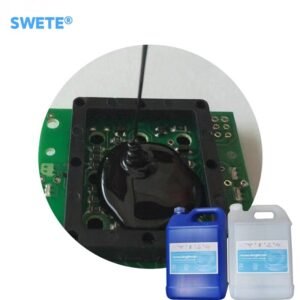

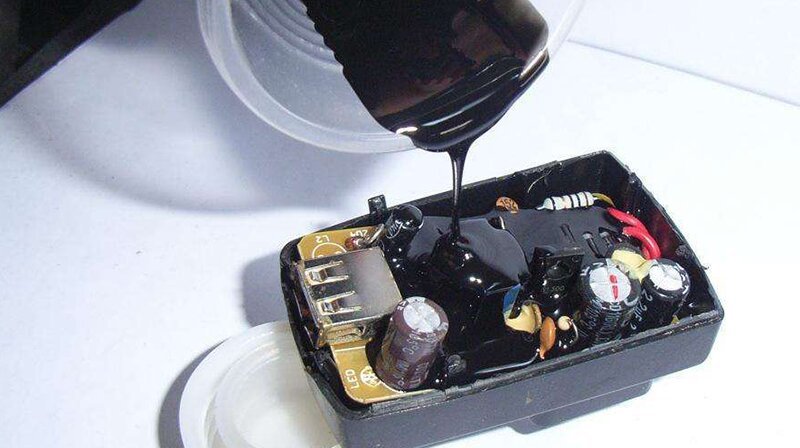

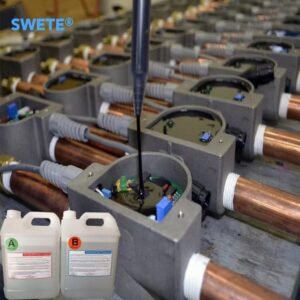

WD1588AB can be widely used for electronics potting, power encapsulation, mold filling and the insulation of other electronic components, moisture-proof, confidential encapsulation, etc.
Technical Data
| Part | WD1588A | WD1588B |
| Color | Black | Red Black |
| Specific gravity | 1.65 | 0.96 |
| Viscosity(25ºC) | 1500-4000CPS | 500-2000CPS |
| Mixing ratio | A:B=100:20(weight ratio) | |
| Hardening conditions | 25ºCx 8H to 10H or 55ºCx 2H(2g) | |
| Usable time | 25ºCx40min(100g) | |
Measuring
With gloves on, pour equal amounts of resin and hardener into a mixing cup. And then pour the mixture into another clean mixing cup to ensure you mix it well.
TIP – Mix up a little more than you think you’ll need because you want to completely cover your work in one shot and not have to mix more later.
Mixing
Stir well for at least 3 minutes. Scrape the sides and the bottom to ensure you’re thorough (unmixed material will leave you with sticky spots that just won’t cure). Once you put the resin and hardener together, you’ll have about 40 minutes of working time before the resin thickens and cures.
Pouring
After making sure your piece is level, go ahead and pour AmazingResin over your work. Don’t be scared! It’ll start to level on its own, and you can spread it around into place. Let the resin run over the edges and then just use a brush to tidy it up. You’ll notice bubbles will begin to rise to the surface. Many of these will pop on their own, but you can also pop them by torch.
TIP – Wooden panels work best for large pieces rather than canvas because they won’t sag under the weight of the resin.
Resin needs to sit for several hours in a dust-free space while it cures. In about 8 hours, it will be tacky but you can pour a second coat if necessary. In about 12 hours it will be dry to the touch, and within 24 hours it will be 95% cured. It will be fully cured within 72 hours. CLEAN UP – To reuse your mixing tools, wipe them down with a paper towel before the resin dries.
Package
1kg, 5kg per bottle or barrel, 25kg per barrel.
Storage Conditions
The product should be sealed in its original packaging container and stored in a dry and ventilated place. In an environment of 18-40ºC, the shelf life is 6 months. If the shelf life is exceeded, analysis is required to determine whether it is still valid.
Due to the storage conditions, this product may experience a small amount of precipitation during storage, which is a normal phenomenon. After stirring evenly, it can be used normally.
