Epoxy Potting Resins for Electronic Devices

Basic Information

Model NO.	WD9202AB	Linear Expansion Coefficient	48-65
Thermal Conductivity	0.40-0.65	Insulation Strength	15-21
Dielectric Constant	≤4.2	Volume Resistivity	1.0×10¹⁵
Water Absorption	≤1.0	Transport Package	Barrel
Specification	25kg, or customized available	Trademark	SWETE
Origin	Guangdong, China	Production Capacity	50000 tons Per Year

Product Description

There are many varieties of epoxy resin potting sealant in potting sealant, and the scope of application is wide, especially in terms of technical requirements. Therefore, in terms of curing, it can be divided into two types: room temperature curing and heating curing. Whether it is mechanical potting or artificial potting, it can achieve the characteristics of protecting electrical parts after curing, especially the superior waterproof, moisture-proof, and corrosion resistance.

Epoxy Potting Resins for Electronic Devices

Application

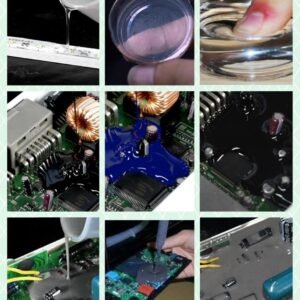

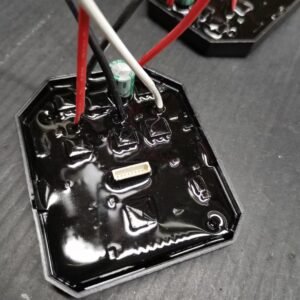

Suitable for capacitor, igniter, transformer, aquarium pump, drive power, sensor, and other electronic products insulation waterproof package.

Epoxy Potting Resins for Electronic Devices

Characteristics

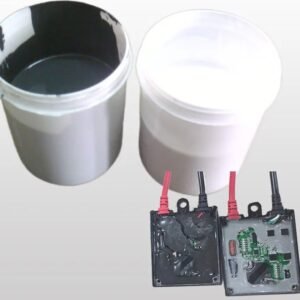

Good insulation performance, good physical properties, excellent surface gloss, good processability, and good crack resistance.Test data, as bellow:

I.Appearance
Main agent A: Black viscous liquid (Color-Tunable)
Curing agent B: Brown liquid

II.Density(Density (25ºC) g/cm³
Main agent A: 1.70-1.85
Curing agent B: 1.03-1.12

III.Viscosity (40ºC, mPa.s)
Main agent A: 1000-3500
Curing agent B: 15-35

Property after curing (25ºC, 5-6 hours curing)

IV.Glass Transition Temperature (ºC): 45-75

V.Linear Expansion Coefficient(ppm/k, lower than the average of Tg ): 48-65

VI.Water Absorption(%, 100ºC/24h): ≤1.0

VII.Thermal Conductivity (W/mK): 0.40-0.65

VIII.Insulation Strength (KV/mm): 15-21

IX.Dielectric Constant (50Hz) : ≤4.2

X. Volume Resistivity (Ω/cm) : ≥1.0×1015

Mixing Ratio

100:80-20

Package

Component A: 25kg /barrel
Component B: 5kg /barrel Epoxy Potting Resins for Electronic Devices

Storage Conditions

The product should be sealed in its original packaging container and stored in a dry and ventilated place. In an environment of 18-40ºC, the shelf life is 6 months. If the shelf life is exceeded, analysis is required to determine whether it is still valid.

Epoxy Potting Resins for Electronic Devices

Due to the storage conditions, this product may experience a small amount of precipitation during storage, which is a normal phenomenon. After stirring evenly, it can be used normally.
