Basic Information
| Model NO. | WD90200AB | Linear Expansion Coefficient | ≤27 |
| Thermal Conductivity | ≥0.75 | Insulation Strength | ≥20 |
| Dielectric Constant | ≤3.8 | Volume Resistivity | ≥1.0×1016 |
| Water Absorption | ≤0.7 | Transport Package | Barrel |
| Specification | 25kg, or customized available | Trademark | SWETE |
| Origin | China | Production Capacity | 50000tons Per Year |
Product Description
Description
Electronic bridge stack, high-end heat dissipation regulator, automobile and motorcycle sensors, and other electronic product packaging. It has good heat dissipation, a small linear expansion coefficient, strong cracking resistance, good insulation performance, excellent surface gloss, and good processability.
Application

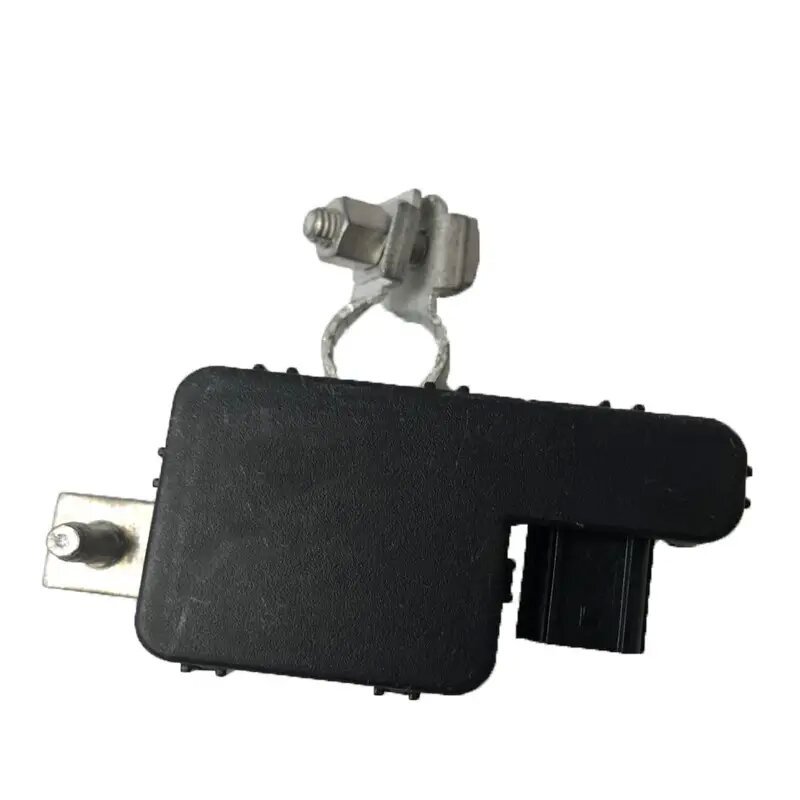

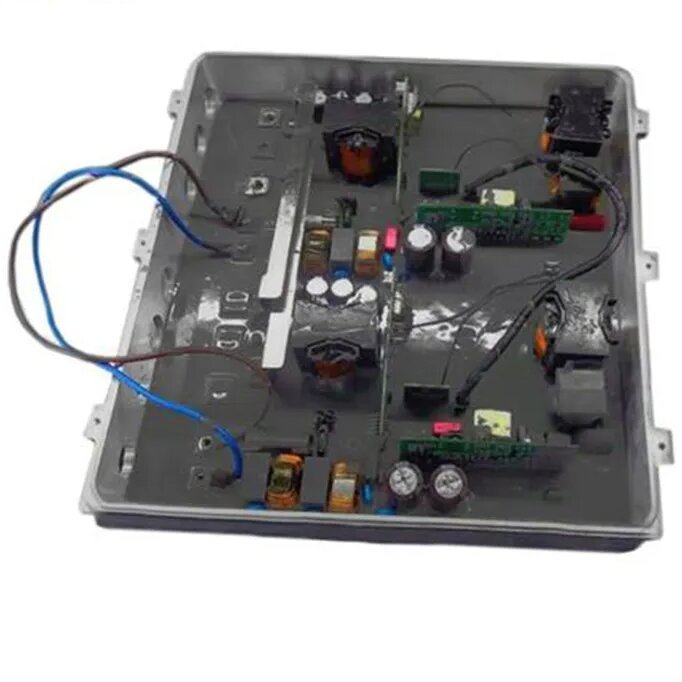

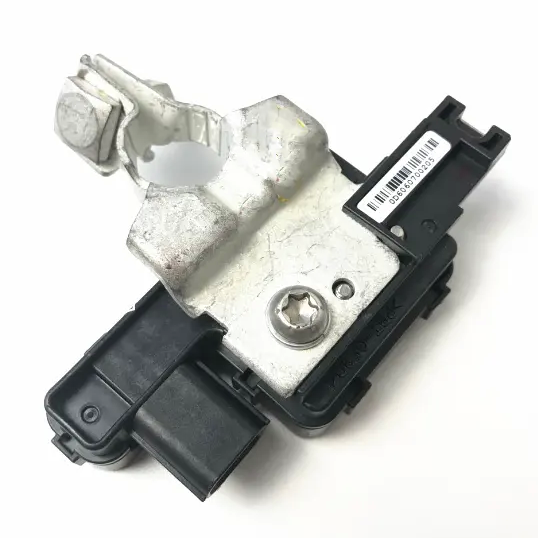

Electronic bridge stack, high-end heat dissipation regulator, automobile and motorcycle sensors, and other electronic product packaging.
Characteristics
Good insulation performance, good physical properties, excellent surface gloss, good processability, and good crack resistance. Test data, as bellow:
One-component performance test data

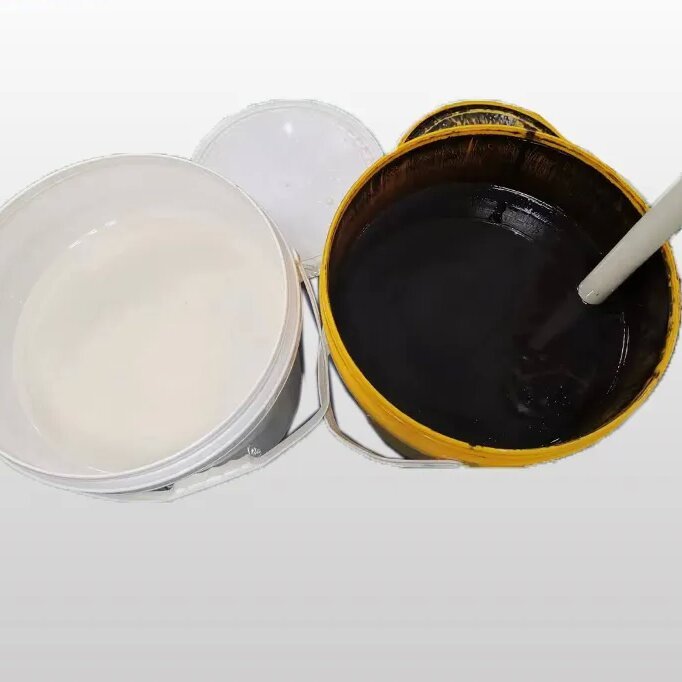

| Appearance | Main agent A | Black viscous liquid |
| Curing agent B | Brown viscous liquid | |
| Density | Main agent A | 1.84-1.90 |
| Curing agent B | 1.68-1.74 | |
| Viscosity | Main agent A | 40000-80000 |
| Curing agent B | 4500-9500 |
Property after curing (25ºC, 5-6 hours curing)
| Glass Transition Temperature (ºC) | ≥160 |
| Linear Expansion Coefficient(ppm/k, lower than the average of Tg ) | ≤27 |
| Water Absorption(%, 100ºC/24h) | ≤0.7 |
| Thermal Conductivity (W/mK) | ≥0.75 |
| Insulation Strength (KV/mm) | ≥20 |
| Dielectric Constant (50Hz) | ≤3.8 |
| Volume Resistivity (Ω/cm) | ≥1.0×1016 |
Mixing Ratio
100:80-20
Package

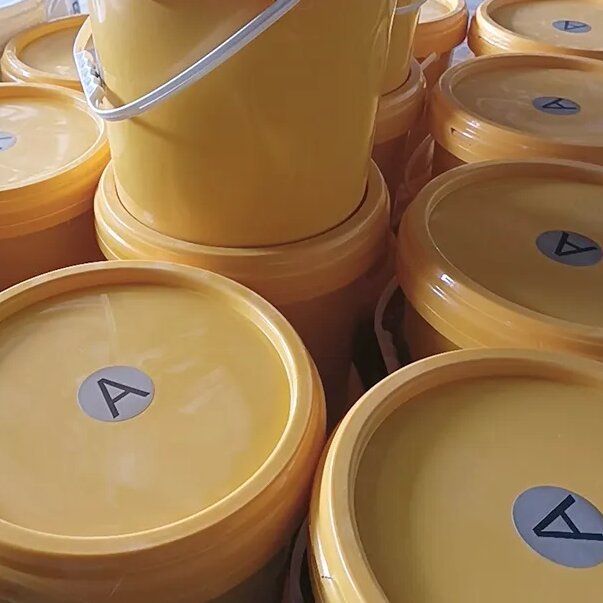

Component A: 25kg /barrel

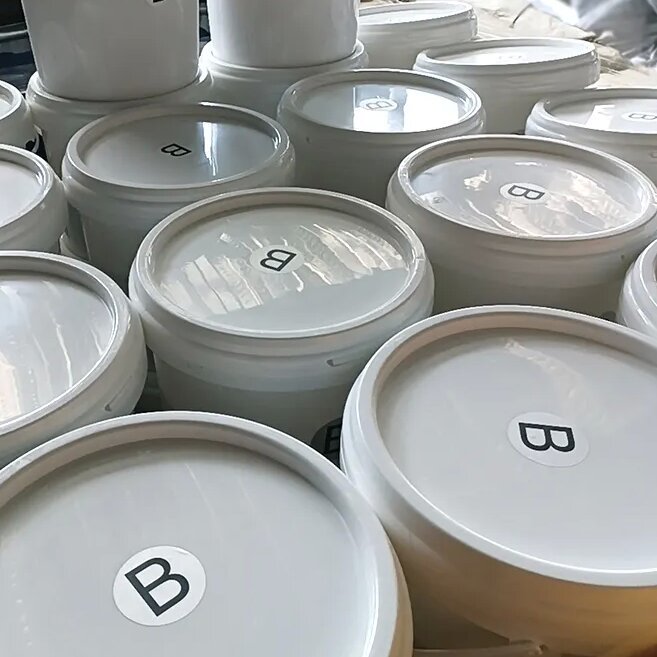

Component B: 5kg /barrel
Storage Conditions
The product should be sealed in its original packaging container and stored in a dry and ventilated place. In an environment of 18-40ºC, the shelf life is 6 months. If the shelf life is exceeded, analysis is required to determine whether it is still valid.
Due to the storage conditions, this product may experience a small amount of precipitation during storage, which is a normal phenomenon. After stirring evenly, it can be used normally.
