Key Attribute
| CAS No. | NONE | Place of Origin | Guangdong, China |
| Main Raw Material | Epoxy | Usage | Motors & transformers |
| Other Names | Fast-curing solventless impregnated resin | MF | NONE |
| EINECS No. | NONE | Classification | Other Adhesives |
| Brand Name | SWETE | Model Number | SW1140S |
| Type | Single Component | Brand | SWETE |
| Product name | Fast-curing solventless impregnated resin | Appearance | Yellow-brown uniform transparent liquid, no mechanical impurities. |
| Certificate | UL | Viscosity | 20-60s |
| Component | One Component | Gel Time | 3-8min@130°C |
| Curing condition | 135-155°C for 3-4 hours | Thick layer cure | No less uniform than S1,U1,I3.2@130°C,2h |
| Volatile in Curing | ≤30%@130°C,2h |

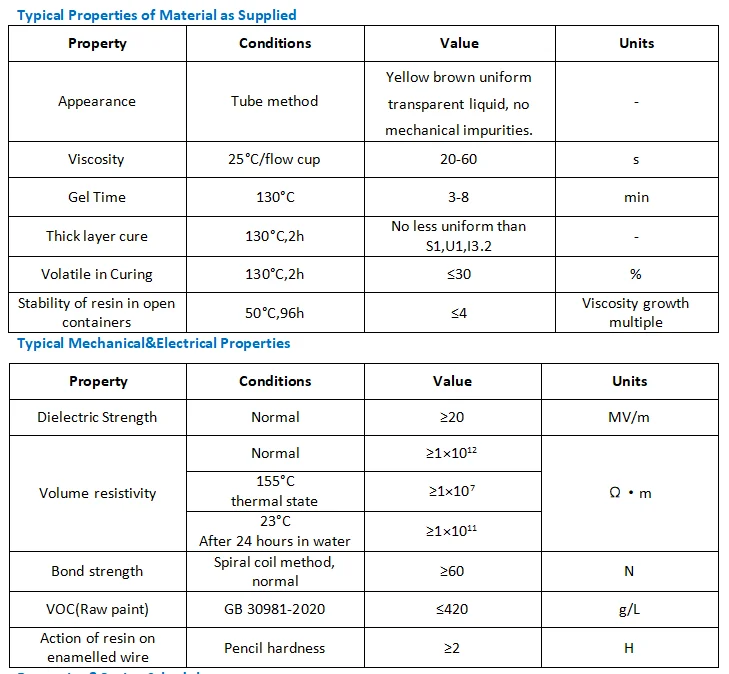

PRODUCT SPECIFICATIONS
No | Item | Value |
1 | Other Names | Fast-curing solventless impregnated resin |
2 | Type | Single component |

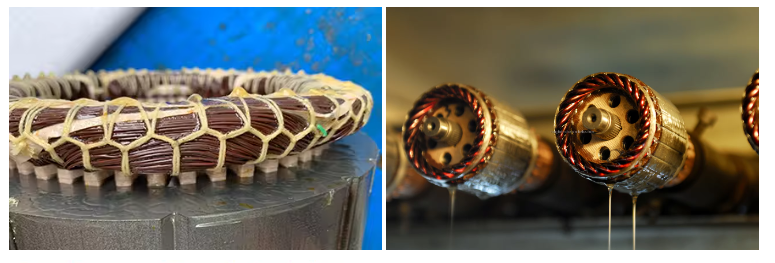

3 | Usage | It is suitable for vacuum and atmospheric pressure insulation treatment of all kinds of motor and electrical coils below H class, and the detailed use process can be contacted by our technical department. |
4 | Features | • Thermal class：H(180°C) • Excellent insulation performance • Fast curing speed and good storage stability • High mechanical strength of the cured material |
