Characteristics:
Good heat dissipation, small coefficient of linear expansion, strong anti-cracking performance, good insulation performance, excellent surface gloss, and good workmanship.
Application:

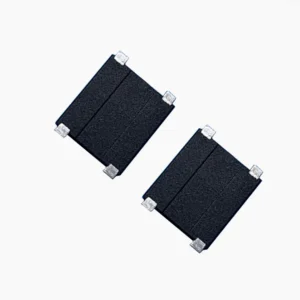

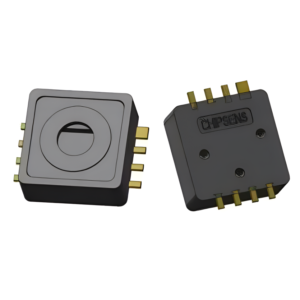

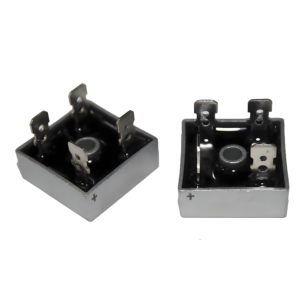

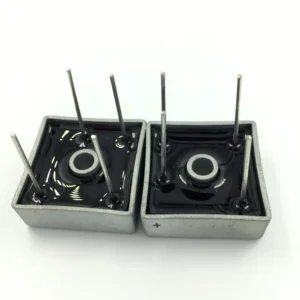

Electronic bridge stack, high-end heat dissipation regulator, automobile and motorbike sensors, and other electronic product packaging.
Properties before curing:
| Appearance | Component A | Black viscous liquid |
| Component B | Brown viscous liquid | |
| Density(25℃, g/cm³) | Component A | 1.84-1.90 |
| Component B | 1.68-1.74 | |
| Viscosity (40℃, mPa.s) | Component A | 40000-80000 |
| Component B | 4500-9500 |
Properties after curing:
| Glass Transition Temperature (℃) | ≥160 |
| Linear Expansion Coefficient(ppm/k, lower than the average of Tg ) | ≤27 |
| Water Absorption(%, 100℃/24h) | ≤0.7 |
| Thermal Conductivity (W/mK) | ≥0.75 |
| Insulation Strength (KV/mm) | ≥20 |
| Dielectric Constant (50Hz) | ≤3.8 |
| Volume Resistivity (Ω/cm) | ≥1.0×1016 |
Mixing Ratio:
100:90
Packaging:
Component A: 10kg/barrel
Component B: 9kg/barrel
Storage conditions:
The product should be sealed in the original packaging container and stored in a dry and ventilated place. The shelf life is 6 months in an 18-40℃ environment. If shelf life is exceeded, analysis is required to determine whether it is valid.
Due to storage conditions, a small amount of precipitation may occur during storage, which is normal, and can be used normally after mixing.
